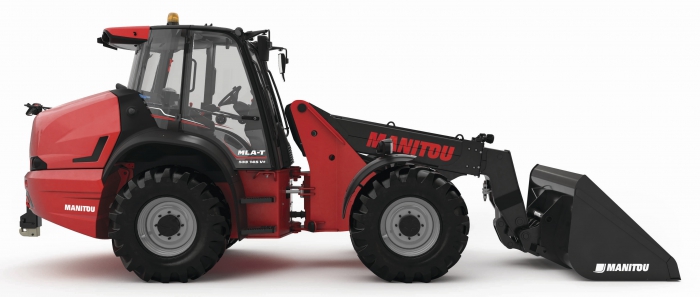

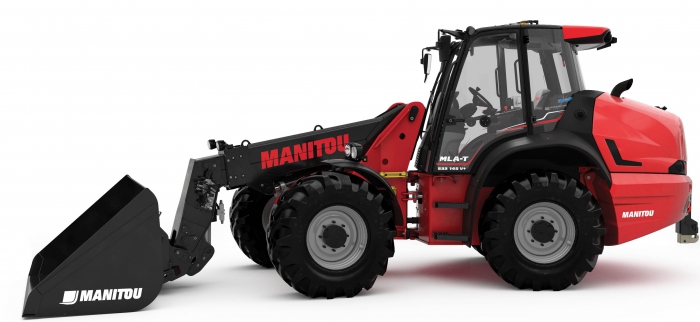

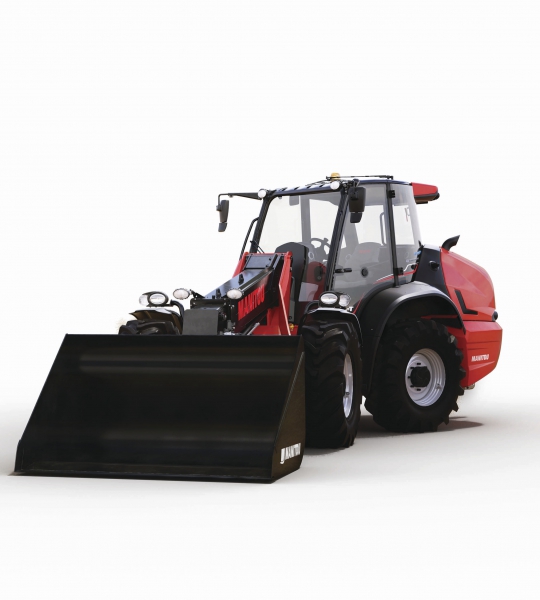

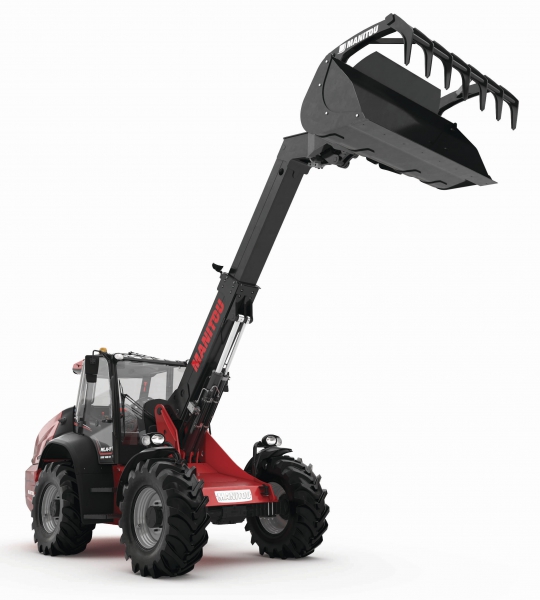

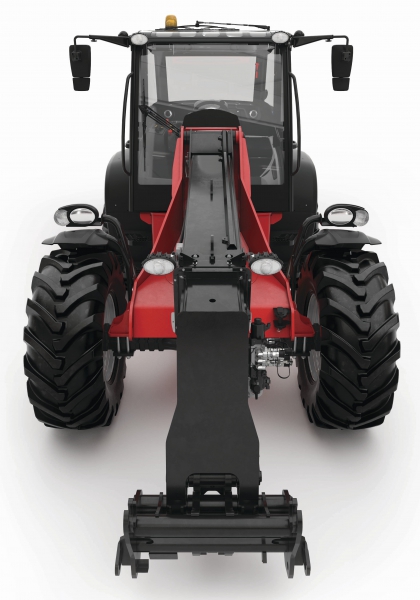

The new Manitou MLA 533-145

Manitou comes with the telescopic articulated loader MLA-T 533-145V +. This scoop for the French brand has as a power source a 105 kW (143 hp) 4.1 liter four-cylinder Deutz.

Manitou MLA 533-145

The transmission is a CV with a top of 40 km / h.

The lifting power of the new Manitou is 3,300 kg and the lift height is 5,2 meters. The articulated steering hinges only 2 x 44 degrees in width due to its sufficient strength.

The freedom in length comes from the pivoting rear axle. It is hydraulically lockable as an option.

Manitou MLA 533-145

The hydraulics are of the load sensing type and deliver 158 liters / min; the operating pressure is a maximum of 270 bar. The continuously variable hydro-mechanical transmission is a collaboration between Dana and Rexroth. Without attachment, the weight of the 533 is 8,430 kg. It is 5.6 meters long and 2.3 meters wide. The driver can board and alight both on the left and on the right. There are three specification levels: Classic, Premium and Elite.
